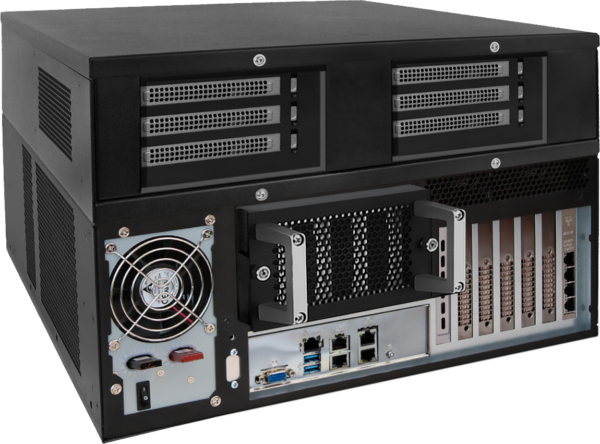

Mayflower®-Q12aW-SP5

Additional information

Mainboard / Backplane	Industrial Mainboard, 24/7 operation, long-term available
Processor	AMD® EPYC™ 9004/97×4, Socket SP5, Liquid cooled
RAM	8x DDR5 RDIMM max. 4 TB max. 4800 MHz
Graphic Card	AST2600, 512 MB DDR4, OnBoard AI support: Multi-GPU support, PCIe x8/x16, Liquid cooled Optional: NVIDIA® T600, 4 GB GDDR6, 4x mini DisplayPort
I/O	2x 1 GBit LAN (RJ45) 2x 10 GBit LAN (RJ45) 1x Dedicated IPMI LAN (RJ45) Optional: 4x 10 GBit LAN (RJ45) 2x USB 3.2 (Gen 1) 1x VGA 1x UID LED/BMC Reset
Mass Storage	Internal: 1x M.2 (M-key, Type: 2280) Internal: 1x M.2 (M-key, Type: 22110/2280) External: 2x 5.25" External: QuickTray®-v3, 1x integrated (2x 5.25“ required) Extension: Optional up to 2x QuickTray®-v3, up to 26 GB/s per QuickTray®-v3 (2x QT up to 28 GB/s) and 240 TB with 4x NVMe SSDs
Power Supply	9 ~ 18 VDC 1100 Watt Optional: 24/48 VDC or AC power supply
Expansions (mechanical)	4x PCIe x16 (Gen 5) 2x PCIe x8 (Gen 5) Extension: 6x PCIe (Gen 5) slots with 40 lanes Can be divided into PCIe x16 and PCIe x8 as required Full-Height Additional extensions for automotive applications (Ethernet, CAN, LIN®, etc.)
Chassis	19" 4 U rackmount chassis
Dimensions (W x H x D)	430 x 177 x 401 mm Extension: 430 x 115 x 401 mm
Cooling	Active, 2x 120 mm fans Hybrid cooling CPU and GPU liquid cooled Remote radiator with 2x 120 mm fans
Operating Temperature	-20° ~ 70° C, with external radiator (25° C)
Storage Temperature	-20° ~ 70° C
Relative Humidity (operation)	10 ~ 90 % (non condensing)
IP Protection Class	IP20
Supported Operating Systems	Microsoft® Windows® Server Linux®

System Description

The Multi-PCIe data logger combines a wide range of expansion options due to 12x PCIe slots with high computing power thanks to the powerful AMD^® EPYC™ CPU and multi-GPU for AI applications. The Mayflower^®-Q12aW-SP5 offers outstanding performance and flexibility for complex data acquisition and processing. Equipped with state-of-the-art technology, it simplifies test and validation applications on the way to Level 3-5 autonomous driving.

Mayflower®-Q12aW-SP5

Liquid cooled, multi-PCIe data logger for in-vehicle use and AI/GPU and sensor fusion applications with up to 12 PCIe slots
