System Description

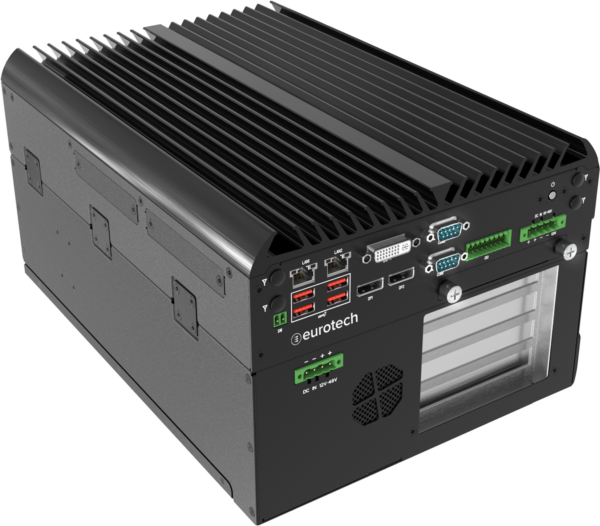

Designed for Industrial use cases, it offers reliable operation thanks to industrial grade ruggedization and a robust power supply. Very compact and power efficient, the ReliaCOR 54-13 can be deployed in dense installations; an optional mounting accessory further increases its versatility.
The ReliaCOR 54-13 features a 13th Generation Intel® Core™ i9 CPU, to deliver power efficient computational crunch, and provides AI acceleration thanks to a high-end NVIDIA® L4 GPU (Up to 2x NVIDIA® L4 or 1x NVIDIA® A30). Connection to the factory floor IP network and sensors is enabled by two 2.5 GbE interfaces that support TSN for deterministic Ethernet; use cases requiring Fieldbus interfaces towards assets (such as CAN/CAN-FD, isolated RS-232/422/485) are optionally available as a Professional Service.
With three PCIe slots (availability depends on starting configuration), the ReliaCOR 54-13 allows great flexibility in adding features to meet any use case.
The ReliaCOR 54-13 is also a capable storage server, supporting one removable bay for 2.5” SATA drives in RAID 0/1 configurations to provide high speed data recording and to offer extra protection to valuable information.
The ReliaCOR 54-13 offers best in class Cybersecurity: it leads the market with IEC 62443-4-1/-4-2 SL2; it is also compliant with California SB-327 password law. Protection starts at the hardware level, with full support for TPM 2.0, Secure Boot and an always-on physical antitampering monitor/logger that is active even when the system is removed from power. For most demanding customers, special production-only images can be configured with full hardware hardening (interface disabling) to further reduce the attack surface.
Eurotech configuration management service allows fine tuning the ReliaCOR 54-13 to meet and exceed your project requirements; examples of personalized configurations include customer branding (with logo and custom colors) and can go to deep customization with a range of options for project specific requirements (such as frame grabbers, choice of internal components, etc.): call us for more information on configuration management options.
The ReliaCOR 54-13 comes with Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGi middleware for IoT Edge Gateways. Distributed and supported by Eurotech, ESF supports ready-to-use field protocols (including Modbus, OPC-UA, S7), MQTT connectivity, web-based visual data flow programming and deep configuration. ESF is also integrated with Everyware Cloud (EC), Eurotech IoT Integration Platform (separately available), enabling advanced diagnostics, provisioning, and full remote device access and management.
