System Description

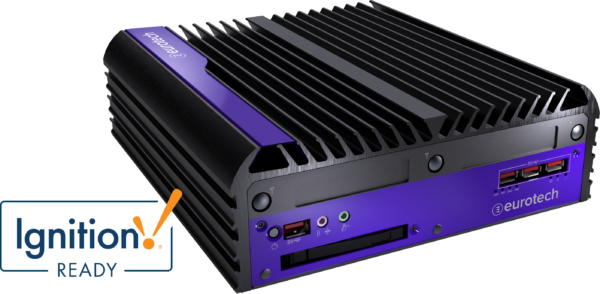

Designed for industrial use cases, it offers reliable operation thanks to industrial grade ruggedization and a robust power supply. Very compact and power efficient, the ReliaCOR 40-13 can be deployed in dense installations; an optional mounting accessory further increases its versatility Completely fanless and without ventilation grids, it offers great resilience and reliability even under extreme load.
The ReliaCOR 40-13 features a top-of-line 13th Gen Intel® Core™ i9 CPU, to deliver power efficient computational crunch, with plenty of RAM thanks to a dual SO-DIMM. It offers a very complete set of interfaces, including dual 2.5 Gbps Ethernet with TSN support, eight USB 3.2 ports (10 Gbps each, great for camera input) and two serial ports; thanks to dual universal bays, additional interfaces and devices can be added (such as 4G/5G cellular modules, 2x 10 GbE ports, 4x GbE on RJ45 or M12, with optional PoE, more USB ports). The ReliaCOR 40-13 is also rich in Fieldbus interfaces, with optional CAN, RS232/422/485 and isolated Digital I/O.
The ReliaCOR 40-13 offers best in class Cybersecurity: it leads the market with IEC 62443-4-1/-4-2 SL2; it is also compliant with California SB-327 password law. Protection starts at the hardware level, with full support for TPM 2.0, Secure Boot and an always-on physical antitampering monitor/logger that is active even when the system is removed from power. For most demanding customers, special production-only images can be configured with full hardware hardening (interface disabling) to further reduce the attack surface.
Eurotech configuration management service offers a simple and fast way to fine tune the ReliaCOR 40-13 to your project requirements; examples of personalized configurations include custom branding (with logo and custom colors) and can go to deep customization with a range of options such as frame grabbers, choice of internal components, etc.: call us for more information on how to take advantage of the ReliaCOR 40-13 flexibility.
The ReliaCOR 40-13 comes with Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGivmiddleware for IoT Edge Gateways. Distributed and supported by Eurotech, ESF supports ready-to-use field protocols (including Modbus, OPC-UA, S7), MQTT connectivity, web-based visual data flow programming and deep configuration. ESF is also integrated with Everyware Cloud (EC), Eurotech IoT Integration Platform (separately available), enabling advanced diagnostics, provisioning, and full remote device access and management.
