System Description

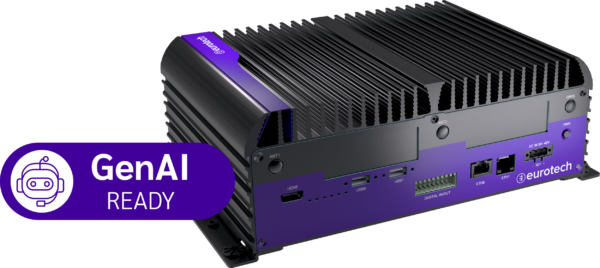

The ReliaCOR 33-11 is powered by the NVIDIA® Jetson AGX Orin™ platform that features an arm® CORTEX®-A78AE CPU delivering up to 275 TOPS of AI performance and integrates an advanced NVIDIA® Ampere architecture GPU with 64 Tensor Cores. It supports rich I/O interfaces: Up to 8x 1GbE, up to 4x PoE, 1x 10GbE, 1x USB 3.2 Gen 2 (10Gbps), up to 8x USB 3.o Gen 1, two serial ports, 2x CAN interface, isolated Digital I/Os and 8x GMSL2 Ports (2x Quad FAKRA) as a factory option. The ReliaCOR 33-11 features with a wide range of wireless connectivity capabilities: it integrates a certified LTE Cat 4 Global cellular modem with GNSS, 5G Ready, Wi-Fi 6E and Bluetooth 5.3. Thanks to dual universal bays, additional interfaces can be added (such as 4G/5G cellular modules, 2x 10GbE ports, 4x GbE on RJ45 or M12, with optional PoE, more USB ports).
The ReliaCOR 33-11 offers best in class Cybersecurity: it leads the market with ISASecure/IEC 62443-4-1/-4-2 SL2. Protection starts at the hardware level, with full support for TPM 2.0, Secure Boot and an always-on physical antitampering monitor/logger that is active even when the system is removed from power.
The ReliaCOR 33-11 comes with Everyware Software Framework (ESF), a commercial, enterprise-ready edition of Eclipse Kura, the open source Java/OSGivmiddleware for IoT Edge Gateways. Distributed and supported by Eurotech, ESF supports ready-to-use field protocols, MQTT connectivity, web-based visual data flow programming and deep configuration. ESF is also integrated with Everyware Cloud (EC), Eurotech IoT Integration Platform (separately available), enabling advanced diagnostics, provisioning, and full remote device access and management.
The ReliaCOR 33-11 can be come with Everyware GreenEdge, this transforms the system into the first industrial Embedded Edge AI fully integrated With Zero-Touch provisioning and full trusted chain from manufacturing to deployment. With AWS IoT Greengrass v2, and ESF+EC, providing a few-clicks onboarding experience and immediate deployment in most countries, eliminating the need for extensive coding and transforming the device management and IoT operations into a smooth workflow. In addition to its technical advantages, Everyware GreenEdge comes with a unified billing system for all software and services related costs through the Amazon Marketplace. This simplifies the procurement process, making it easier for customers to access and manage the solution while also benefiting from AWS’s trusted billing infrastructure.
