Embedded PC Concepion®-tXf-L-v3

System Description

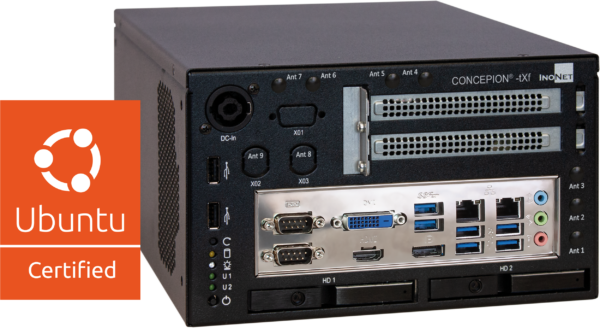

The Edge Intelligence Gateway Concepion^®-tXf-L-v3 – 10th Gen was developed for demanding edge computing and automotive applications and is Ubuntu Certified. The compact, active cooled embedded PC offers powerful 10th generation Intel^® Core™ i CPUs and can be optionally expanded with high-performance GPUs, making it particularly suitable for edge intelligence and AI-supported applications in the automotive environment, such as quality inspections.

Thanks to its robust design with industrial components, the PC is built for 24/7 operation and can withstand ambient temperatures of up to 55° C. Connectivity and extension options include Wi-Fi, Bluetooth, GNSS and LTE, as well as 5G on request. The system is optimized for use in vehicles and supports Microsoft^® Windows^® 10/11 and Linux^®.

Learn more about
Ubuntu Certified.

Additional information

Mainboard / Backplane	Industrial Mainboard (mini-ITX), 24/7 operation, long-term available
Processor	Intel® Core™ i CPUs 10th Generation Intel® Turbo-Boost: Depends on the selected configuration
Chipset	Intel® W480E Watchdog Timer, iAMT 14.0, TPM 2.0
RAM	2x DDR4 SO-DIMM max. 64 GB DDR4
Graphic Card	Intel® UHD 630 (integrated in CPU) Optional**: NVIDIA® A2 Tensor Core GPU with dedicated cooling, 10 RT Cores, 16 GB GDDR6, PCIe x8 On request: NVIDIA® L4 Tensor Core GPU
Mass Storage	Internal: 1x M.2 External: 2x 2.5" HDD/SSD (in shuttle)
I/O	2x 1 GBit LAN (RJ45) 2x 10 GBit LAN (RJ45), PCIe x4 (Gen 3) Optional**: 2x 10 GBit LAN (RJ45) On request: 2x 1 GBit LAN (M12) 2x USB 2.0 6x USB 3.2 1x RS-232/422/485 2x RS-232/422/485 Optional: 1x RS-232/422/485 1x DisplayPort 1x HDMI 1x DVI-D 1x LVDS/eDP (internal) 3x Audio (Line-In, Line-Out, Mic) 1x GPIO Header, 8 Bit (internal)
Expansions (mechanical)	1x M.2 (E-key, Type: 2230) for WIFI/BT 2x PCIe x8 (mech. x16) (The max. power loss must not exceed 50 Watt.)
Power Supply	11 ~ 34 VDC 250 Watt/300 Watt M4-ATX NL4 connector (Neutrik) NL4 connector (Neutrik) four-pin with ignition pin Optional**: 16 ~ 30 VDC, 400 Watt, HDPLEX
Chassis	Robust 1mm galvanized sheet steel with powder coating On request: Intrusion Detection

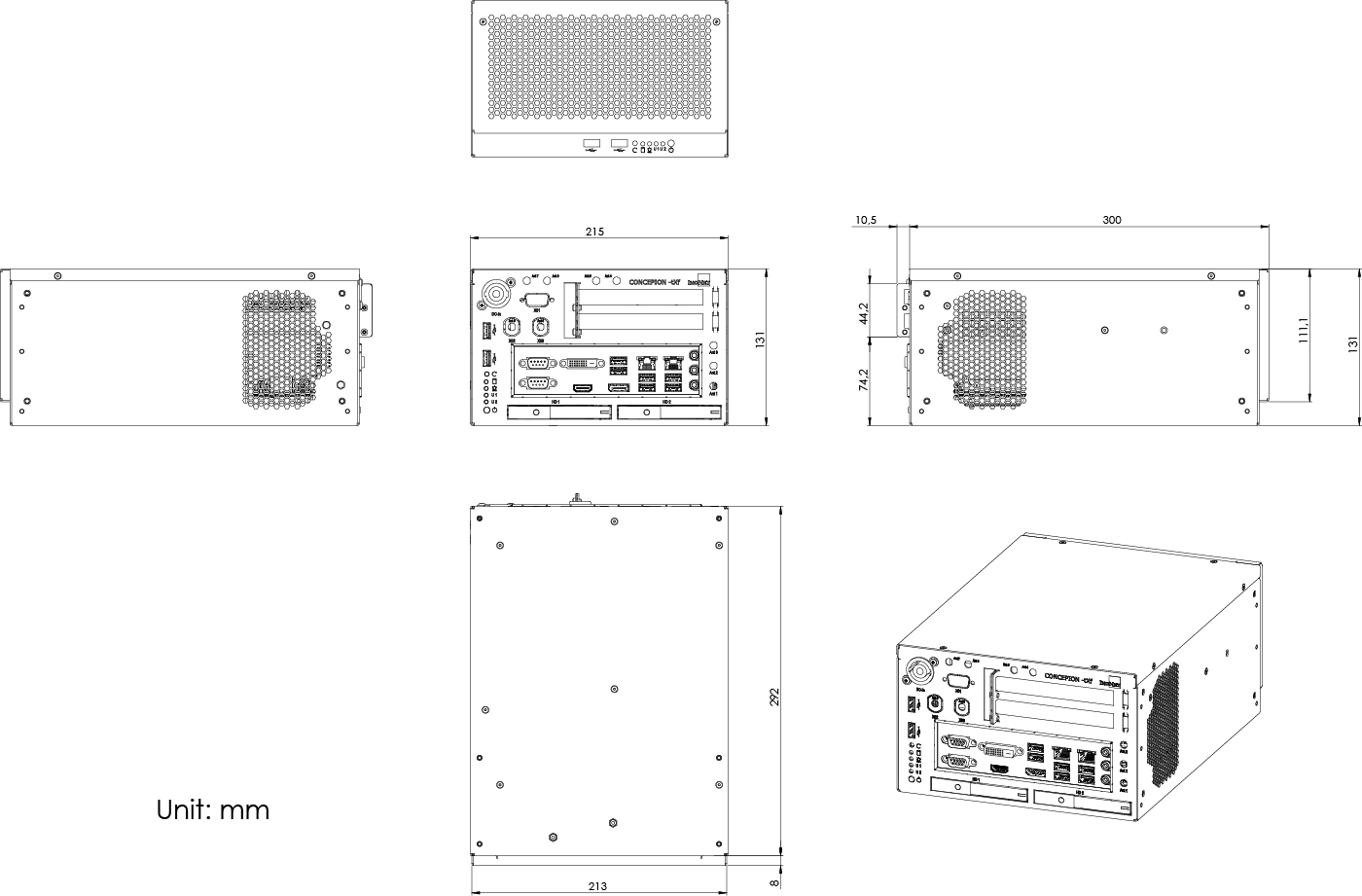

Dimensions (W x H x D)	215 x 131 x 303 mm
Cooling	Active, 2x 80 mm fans Filter cartridge incl. mat
Mounting	19" compatible (two systems side by side) Desktop Wall mount

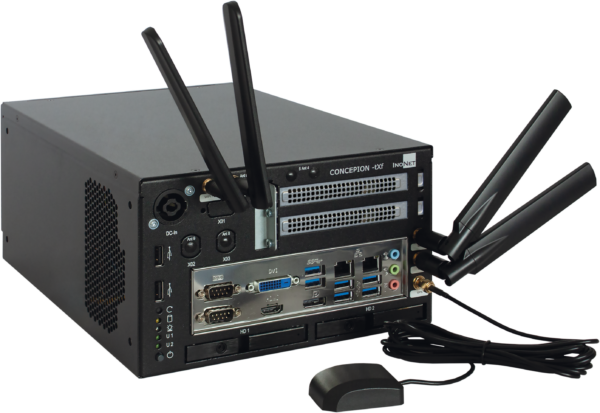

Communication	Wi-Fi/Bluetooth (optional): Intel® M.2 module, 802.11ax dual band, Bluetooth® 5.1 GNSS/LTE (optional): Support for GPS, GLONASS, BeiDou, Galileo, QZSS, Micro SIM slot for 3G/4G (On request: 5G with additional antennas)
Supported Operating Systems	Microsoft® Windows® 11 Microsoft® Windows® 10 Linux®
Operating Temperature	0° ~ 55° C
Storage Temperature	-20° ~ 70° C
Relative Humidity (operation)	10 ~ 90 % (non condensing)
IP Protection Class	IP20
Note:	The Ubuntu certification also includes the options marked with **.

Concepion®-tXf-L-v3 – 10. Gen.

Compact, actively cooled system for edge intelligence and automotive environments. Optional AI support.
