System Description

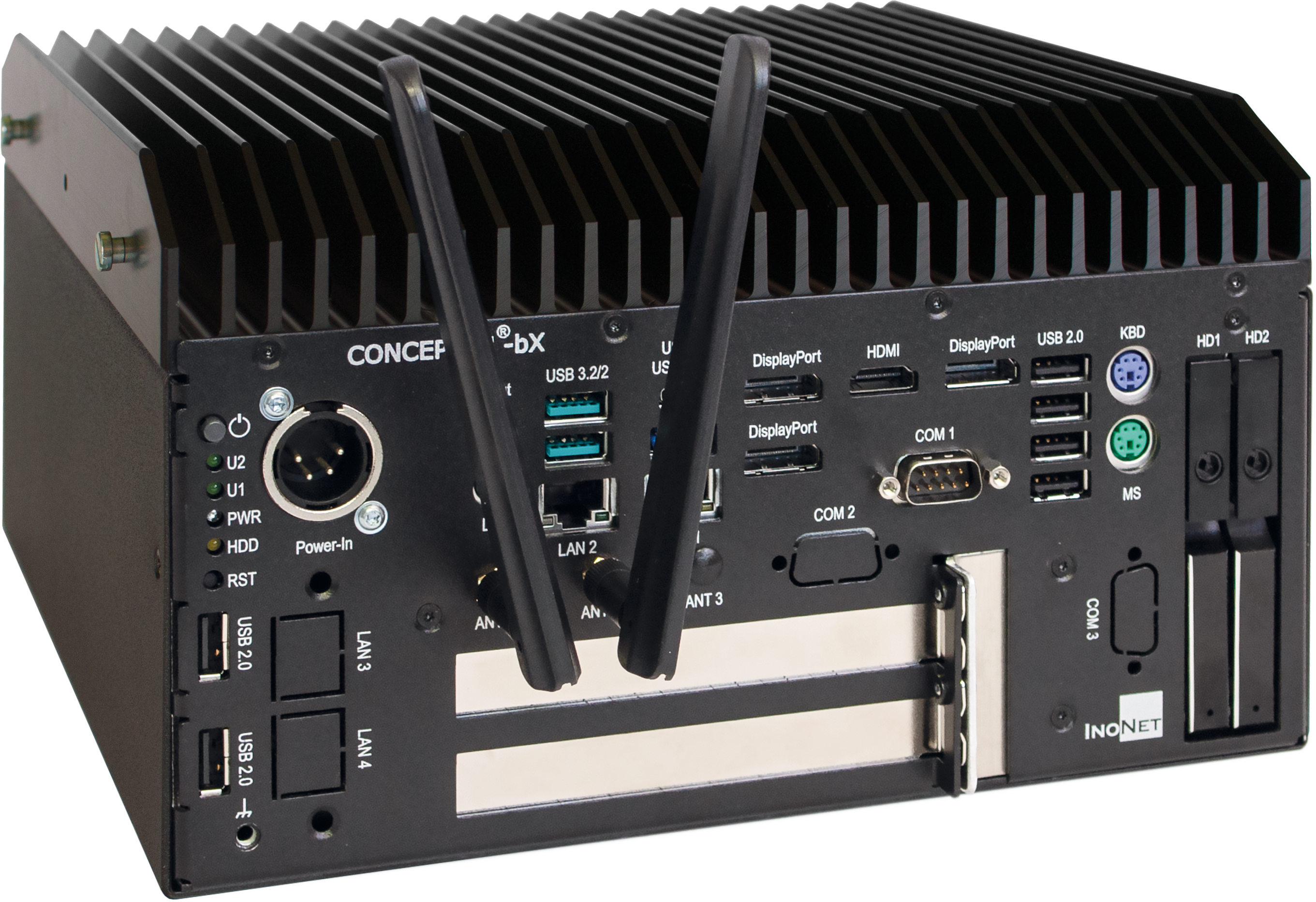

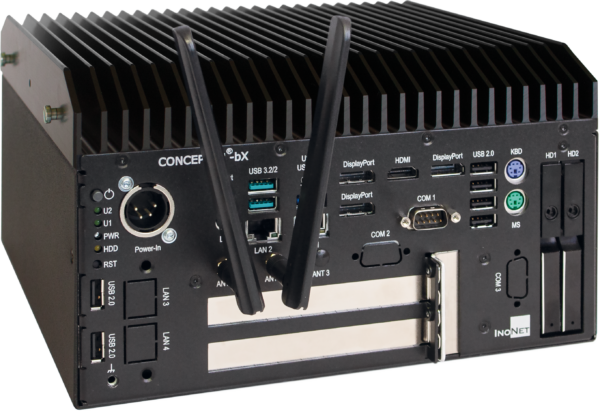

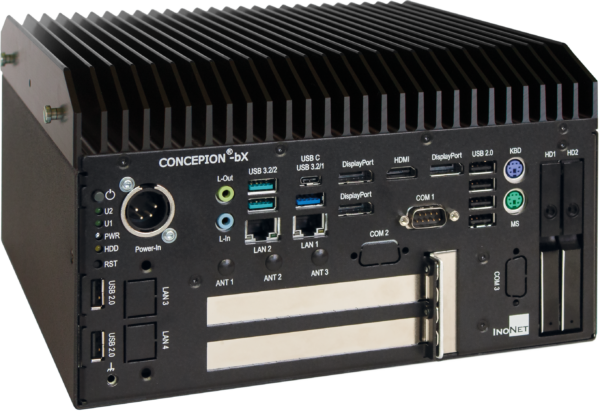

The Concepion®-SbXa-v3-Q670E is a compact measurement system for in-vehicle use in automotive development. This embedded PC features powerful Intel® Core™ i processors up to the 14th generation, a total of four 2.5″ drives, two of them externally accessible and hot-swappable, as well as two PCIe 4.0 slots for CAN, LiN and plug-in cards. The embedded computer works reliably in continuous operation with up to 64 GB DDR5. Thanks to passive cooling and industrial-grade components, the system is very robust for use in vehicles under harsh environmental conditions, such as extreme temperatures -10° to 55° C, vibrations and dust. In terms of many connectivity options, the Concepion®-SbXa-v3-Q670E offers maximum flexibility both through multiple interfaces, Wi-Fi/Bluetooth and GNSS/LTE, and through the use of an automotive power supply. The secure data acquisition platform is also Windows 11 ready (TPM 2.0).
