High-End Line

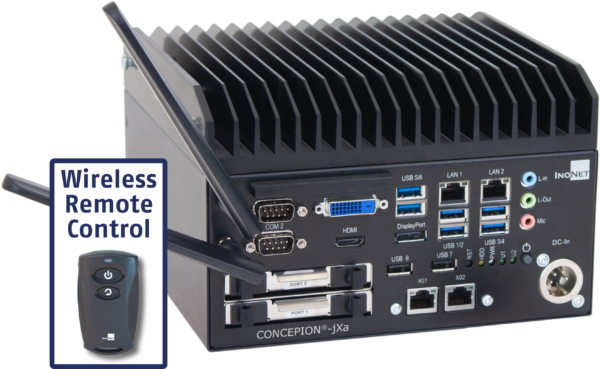

Concepion®-jXa – 10. Gen.
Embedded PC with high power density & remote control option
- High power density with Intel® Core™ i CPUs of the 10th generation
- Passive cooling & 24/7 operation

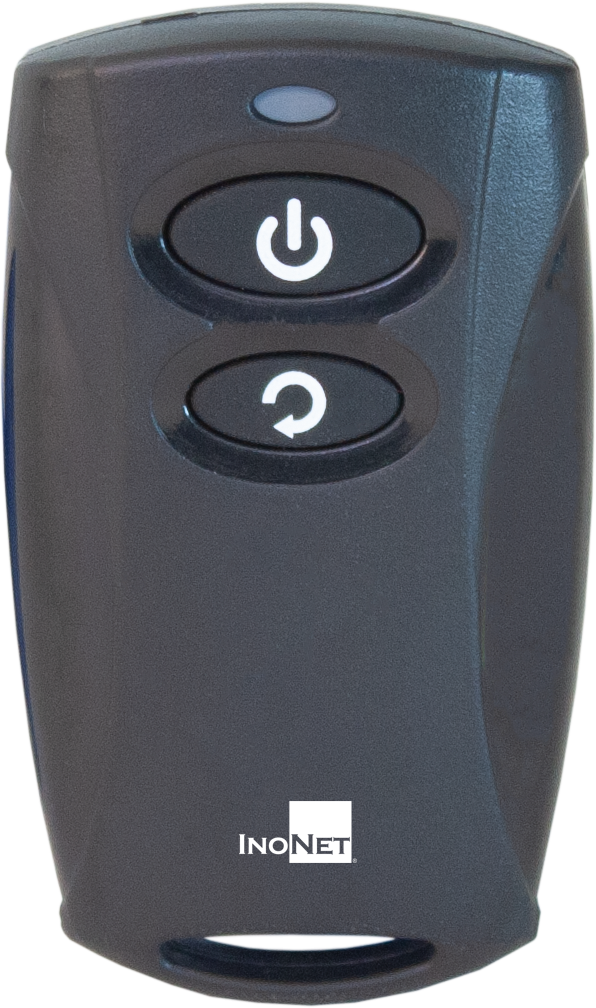

- More comfort with optional radio remote control
- Optional WLAN/Bluetooth module
- Flexibility through multiple interfaces
- Externally accessible 2x 2.5” shuttles for easy hard disk exchange during operation
- Customizability
System Description
The fanless embedded PC Concepion®-jXa – 10th Gen. impresses with compactness combined with high performance with Intel® Core™ i CPUs of the 10th generation. The use of the “Comet Lake-S” processor generation on an industrial mainboard ensures a considerable increase in performance with up to 10 cores and 20 threads. The Concepion®-jXa has two externally accessible 2.5 inch shuttles through which hard disks can also be exchanged during operation. The optional radio remote control can be used to switch the Concepion®-jXa on and off as well as to reset it. This offers even more comfort and expands the range of possible applications. With the addition of an optional WLAN/Bluetooth module, the robust embedded PC can also be wirelessly connected to the network in just a few minutes. In combination with a lockable XLR connector, the system is ideally suited for in-vehicle use in the automotive industry.
Additional information
| Chassis | Robust 1mm galvanized sheet steel with powder coating |
|---|---|
| Dimensions (W x H x D) | 200 x 126 x 206 mm |
| Cooling | Passive |
| Operating Temperature | -10° ~ 55° C |
| Processor | Intel® Core™ i5-10500TE / Intel® Core™ i7-10700T / Intel® Core™ i9-10900T |
| RAM | max. 64 GB DDR4 |
| Mass Storage | 2x 2.5" SATA III SSDs in shuttle |
| I/O | 2x 1 GBit LAN (RJ45) |
| Expansions (mechanical) | 1x M.2 (E-key, Type: 2230), 1 x M.2 (M-key, Type: 2280) |
| Power Supply | 11 ~ 32 VDC |
| Chipset | Intel® W480E |
| Supported Operating Systems | Microsoft® Windows® 10 |
Do you need help finding the right system? Our specialists will be happy to support you!
