High-End Line
Concepion®-bX3
Passive cooled High Performance Embedded PC with two drive shuttles
- Powerful due to Intel® Core™ i CPU 9th Gen. (10th Gen. on request)
- Up to 32 GB RAM
- Two drive shuttles
- Also available as in-vehicle PC for automotive use on request
- 24 hours operation
- Customizability
- 6x USB 3.0
System Description

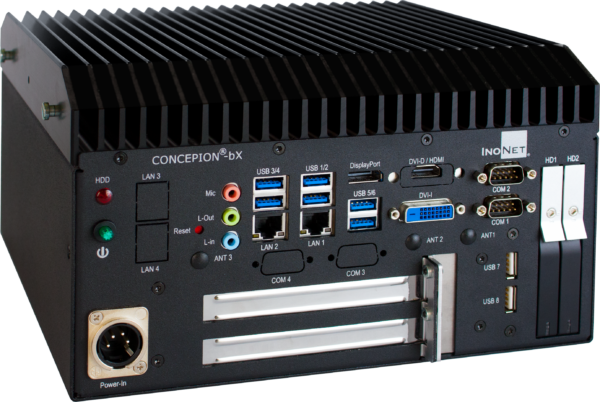

The all-rounder of our embedded PC series is the Concepion®-bX3. This system accommodates powerful desktop and workstation processors, two PCIe slots and a total of four 2.5″ drives, two of them externally accessible and hots-wap capable. The system is passive cooled – the generated heat is dissipated via a heat pipe connection to the generous heat sink. There are no rotating parts in this device, making the embedded PC ideal for use in a wide variety of applications with harsh environmental conditions, such as vibration and dust. The Concepion-bX3 also offers maximum flexibility in terms of power supply, thanks to the use of an automotive power supply with wide-range input and lockable XLR connector.
Additional information
| Chassis | Robust sheet metal chassis |
|---|---|
| Cooling | Passive |
| Operating Temperature | -10° ~ 60° C |
| Dimensions (W x H x D) | 250 x 145 x 260 mm |
| Processor | Intel® Celeron® |
| RAM | max. 32 GB DDR4 |
| Mass Storage | Internal: 2x 2.5" |
| I/O | 2x RJ45 |
| Expansions (mechanical) | 2x PCIe x8, Full-Height, Half-Length |
| Power Supply | 11 ~ 32 VDC |
| Chipset | Intel® C246 |
| Supported Operating Systems | Microsoft® Windows® 10 |
