The FPM-7121T monitor is a low-profile and 12.1″ tall industrial-grade 4:3 monitor. The 5-wire resistive touchscreen is housed in a heavy-duty, die-cast aluminum alloy front panel that provides IP66-compliant protection from water and dust. In addition, the FPM-7000T series monitors support a wide operating temperature range (-20° ~ 60° C) and various mounting options to ensure easy installation and simple operation in different environments.

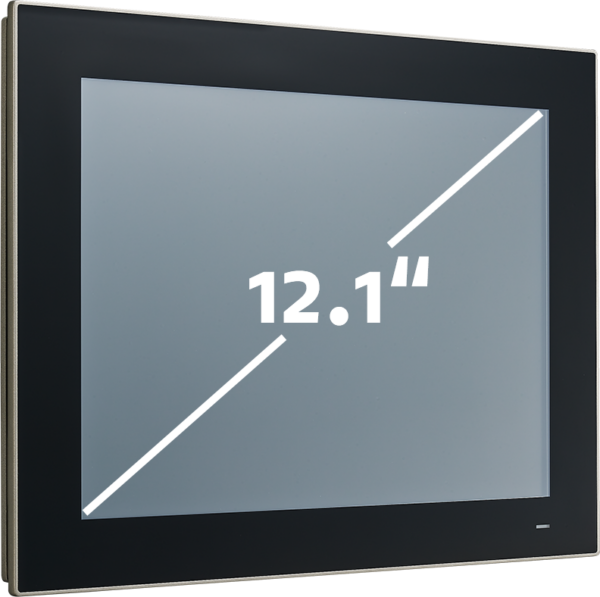

| Display Size | 12.1" |
|---|---|
| Display Type | TFT LED LCD |
| Resolution | 1024 x 768 |
| Colors | 16.2 million |
| Contrast | 700 : 1 |
| Brightness | 600 cd/m² |
| Viewing Angle | 160° H / 140° V |
| Backlight Lifetime | 50,000 hours |
| Touchscreen | Resistive touch |

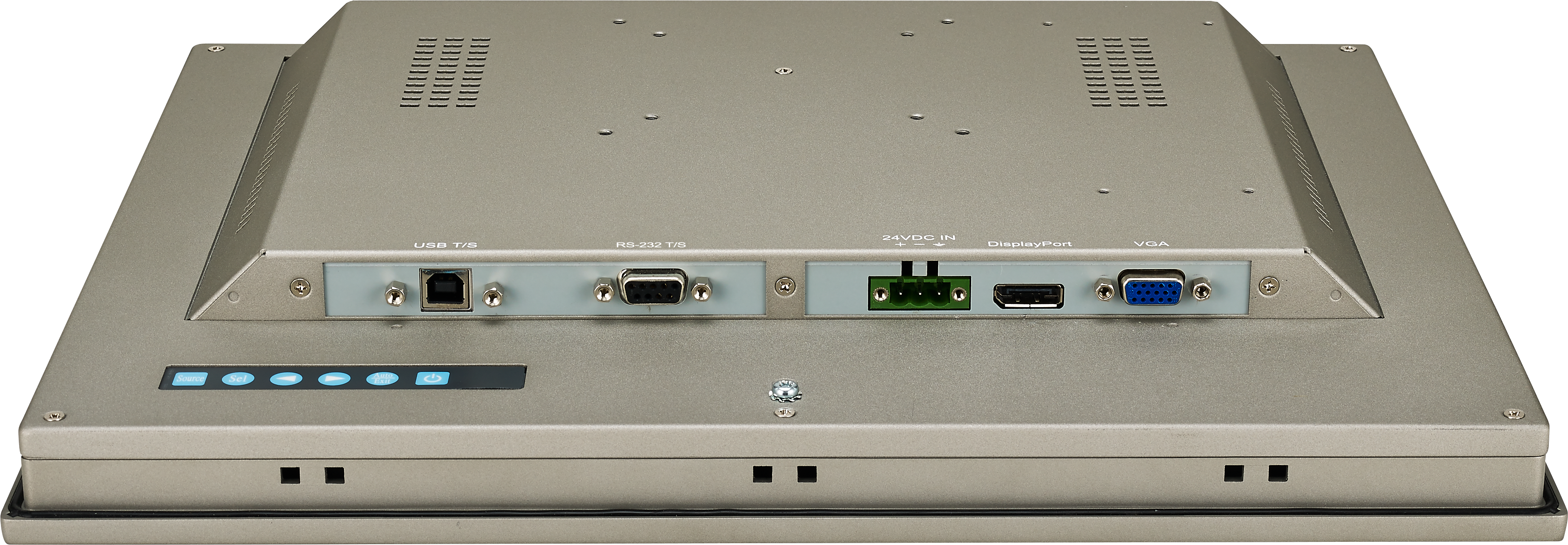

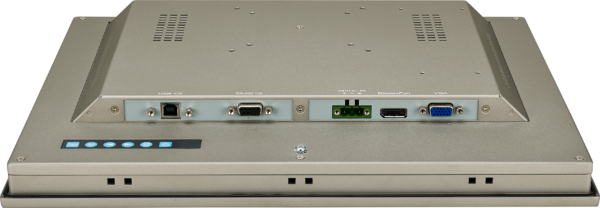

| I/O | 1x DisplayPort |
| Power Input | 24 VDC |
| Supported Operating Systems | Microsoft® Windows® XP/Vista/7/8/10/XPe, Linux® |
| Operating Temperature | -20° ~ 60° C |
| Dimensions (W x H x D) | 311.8 x 238 x 44.5 mm |
| IP Protection Class | IP66 front |
| Certifications | BSMI |
| Panel Cutout Dimensions | 303 x 229 mm |
