Professional Line

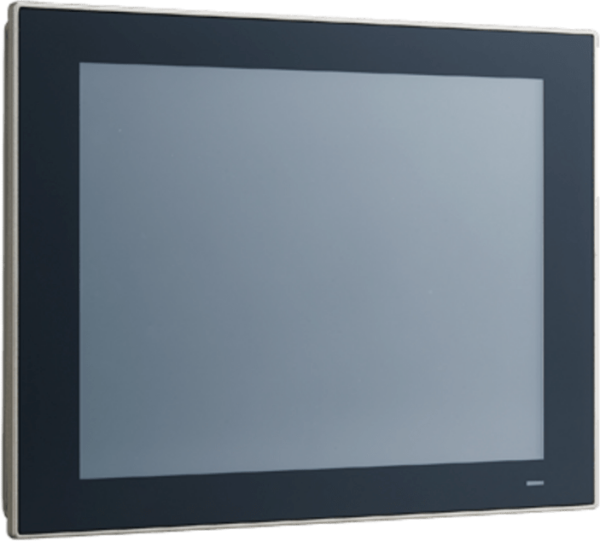

The Lumina®-TPC-317 panel PC is equipped with a 17″ SXGA TFT LED LCD, a low-power Intel® Core™ i3- 8145UE dual-core/ i5-8365UE / i7-8665UE quad-core 8th generation processor and 8 GB DDR4. The TPC-315 comes with an IP66-compliant front panel for dust and water protection and two additional expansion slots that support NVMe, SATA or 5G applications. It is therefore suitable for a wide range of industrial automation applications.
| Display Size | 17" |
|---|---|
| Display Type | SXGA TFT LED LCD |
| Resolution | 1280 x 1024 |
| Brightness | 300 cd/m² |
| Viewing Angle | 160° H / 140° V |
| Backlight Lifetime | 40,000 hours |
| Touchscreen | Resistive touch |
| Processor | Intel® Core™ i3-8145UE |
| I/O | 1x USB 2.0 |
| RAM | 8 GB DDR4 |
| Mass Storage | 1x M.2 M-key type: 2280 (SATA or NVMe PCIe x4) 1x M.2 B-key type: 2242 (SATA/PCIe) 3042, 3052 (5G), 1x 2.5" SSD/HDD (SATA, max. 7 mm) |
| Expansions | 1x Mini PCIe, Full-Size |
| Power Input | 24 VDC ±20% |
| Supported Operating Systems | Microsoft® Windows® 10, Android, Linux® |
| Operating Temperature | -10° ~ 55° C |
| Dimensions (W x H x D) | 410.4 x 343.4 x 68 mm |
| IP Protection Class | IP66 front |
| Cooling | Passive |
| Certifications | BSMI |
| Panel Cutout Dimensions | 401.3 x 334.8 mm |
