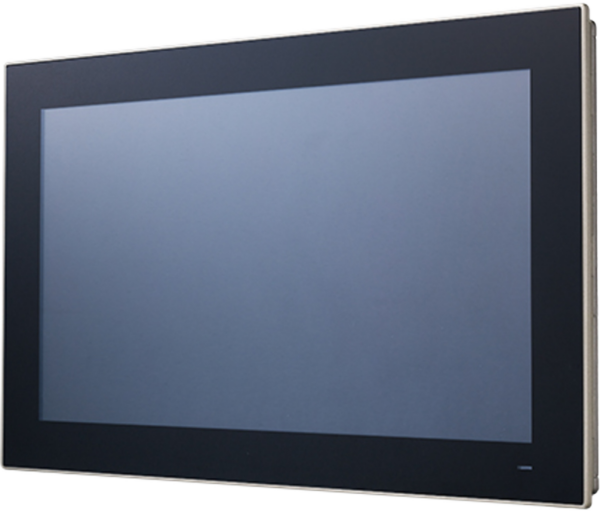

Lumina®-PPC-3241SW-MART is a high-performance panel PC. The capacitive 23.8″ multi-touch display supports a maximum resolution of 1920 x 1080 in 16:9 format. The front IP65 protected Panel PC comes with Microsoft® Windows® 10 IOT LTSC and Intel® Core™ i5-6300U and can therefore be used in demanding applications with harsh environmental conditions right out of the box.
| Display Size | 23.8" |
|---|---|
| Display Type | TFT LED LCD |
| Resolution | 1920 x 1080 |
| Brightness | 350 cd/m² |
| Viewing Angle | 89° H / 89° V |
| Backlight Lifetime | 30,000 hours |
| Touchscreen | Projected capacitive touch |
| Processor | Intel® Core™ i5-7300U |

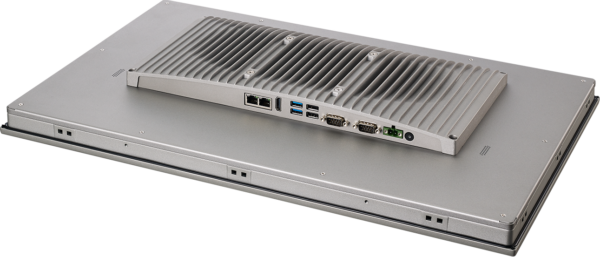

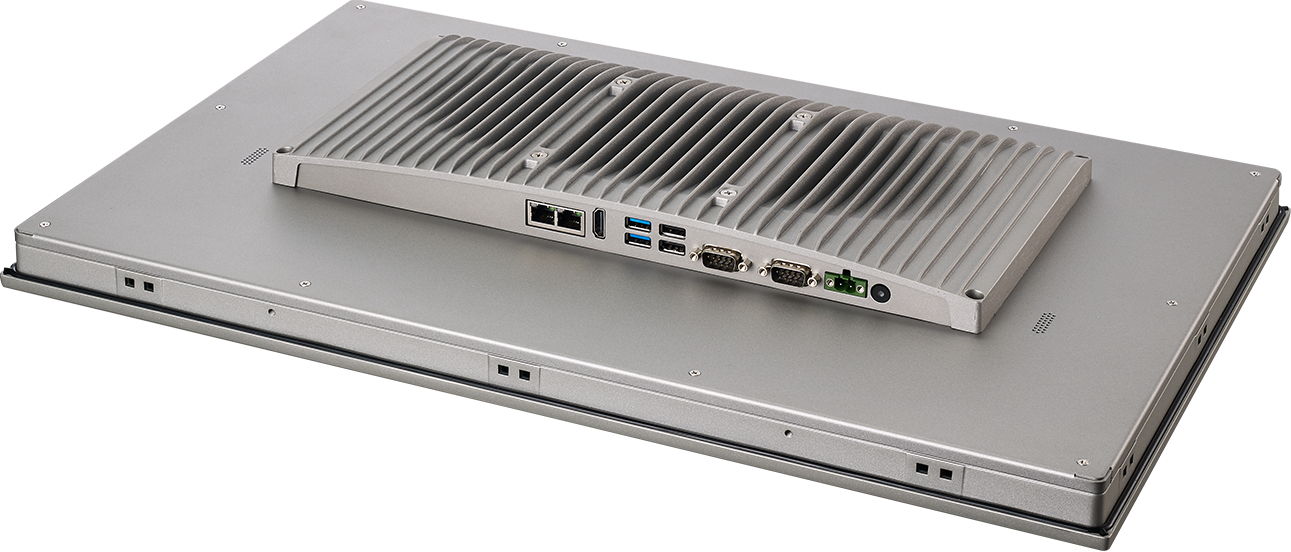

| I/O | 2x RJ45 |
| RAM | 8 GB DDR4 |
| Mass Storage | 1x 128 GB 2.5" 3D TLC SSD |
| Expansions | 1x Mini PCIe |
| Power Input | 12 ~ 24 VDC |
| Supported Operating Systems | Microsoft® Windows® 10 IOT LTSC |
| Operating Temperature | 0° ~ 50° C (with SSD) |
| Dimensions (W x H x D) | 595.9 x 374.1 x 61.5 mm |
| IP Protection Class | IP65 front |
| Cooling | Passive |
| Certifications | BSMI |
| Panel Cutout Dimensions | 586.5 x 364.8 mm |
