Professional Line

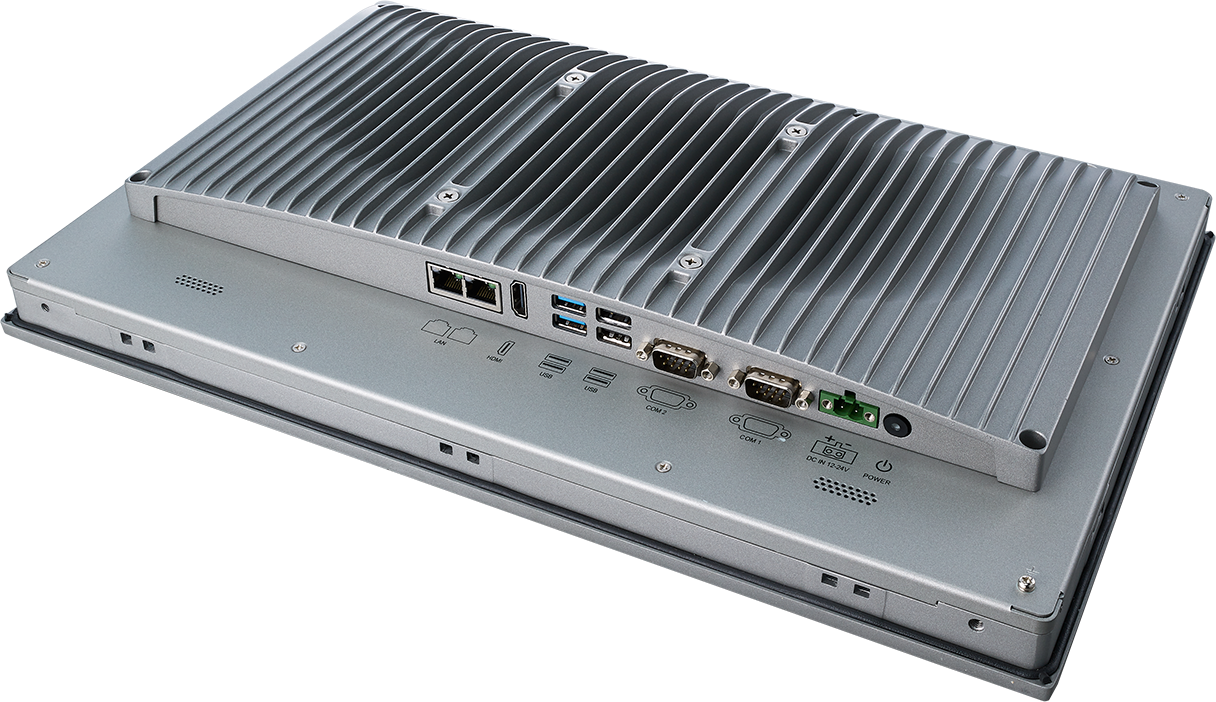

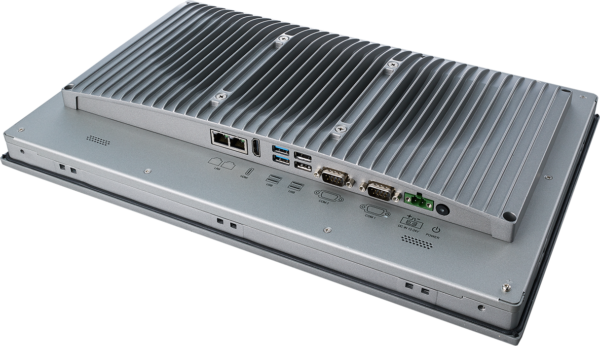

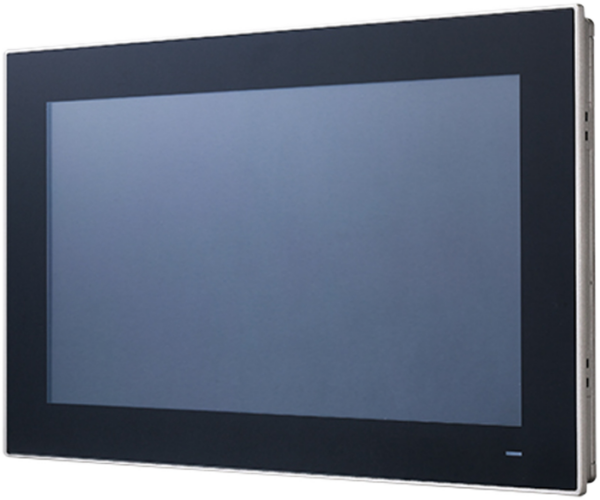

Lumina®-PPC-3151SW-MART is a very powerful Panel PC. The capacitive 15.6″ multi-touch display supports a maximum resolution of 1920 x 1080 in 16:9 format. The front IP65 protected Panel PC comes with Microsoft® Windows® 10 IOT LTSC and Intel® Core™ i5-6300U, making it suitable for demanding applications in harsh environments.
| Display Size | 15.6" |
|---|---|
| Display Type | TFT LED LCD |
| Resolution | 1920 x 1080 |
| Brightness | 450 cd/m² |
| Viewing Angle | 85° H / 85° V |
| Backlight Lifetime | 50,000 hours |
| Touchscreen | Projected capacitive touch |
| Processor | Intel® Core™ i5-6300U |
| I/O | 2x RJ45 |
| RAM | 8 GB DDR4 |
| Mass Storage | 1x 128 GB 2.5" 3D TLC SSD |
| Expansions | 1x Mini PCIe |
| Power Input | 12 ~ 24 VDC |
| Supported Operating Systems | Microsoft® Windows® 10 IOT LTSC |
| Operating Temperature | 0° ~ 50° C (with SSD) |
| Dimensions (W x H x D) | 419.7 x 269 x 62.1 mm |
| IP Protection Class | IP65 front |
| Cooling | Passive |
| Certifications | BSMI |
| Panel Cutout Dimensions | 413 x 262 mm |
Do you need help finding the right system? Our specialists will be happy to support you!
