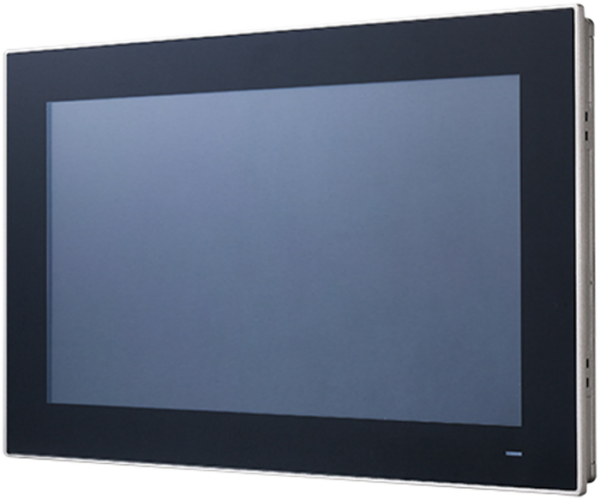

Lumina®-PPC-3150SW-MART is a very energy-efficient panel PC. The capacitive 15.6″ multi-touch display supports a maximum resolution of 1366 x 768 in 16:9 format. The IP65 front-protected panel PC comes with Microsoft® Windows® 10 IOT LTSC and Intel® Pentium® N4200 and can thus be put into operation directly for monitoring on the production floor.
| Display Size | 15.6" |
|---|---|
| Display Type | TFT LED LCD |
| Resolution | 1366 x 768 |
| Brightness | 400 cd/m² |
| Viewing Angle | 85° H / 80° V |
| Backlight Lifetime | 50,000 hours |
| Touchscreen | Projected capacitive touch |
| Processor | Intel® Pentium® N4200, Quad-Core |

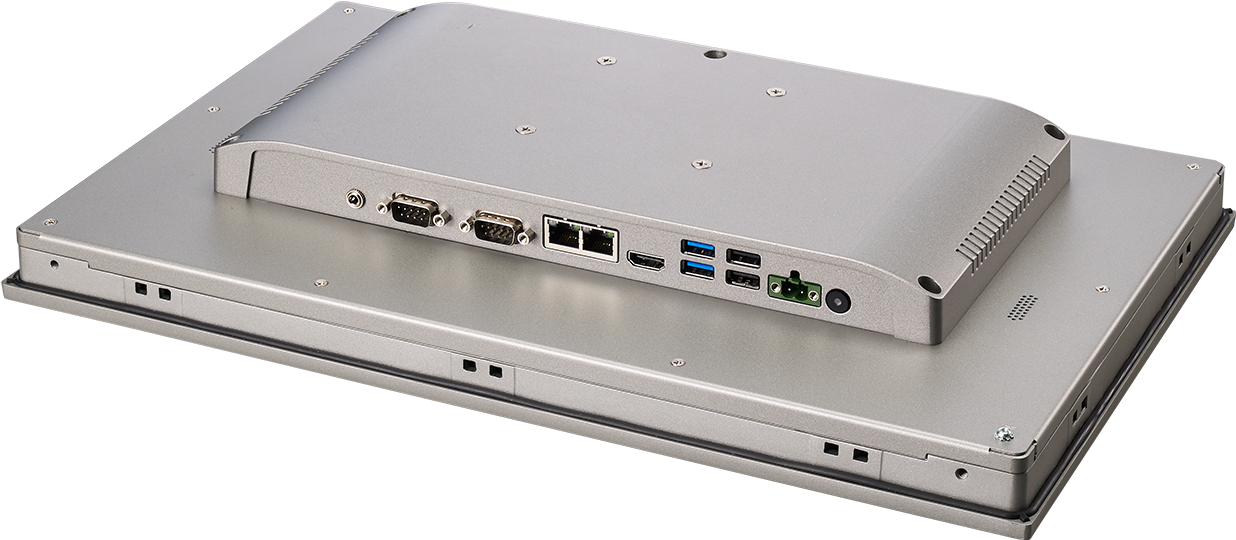

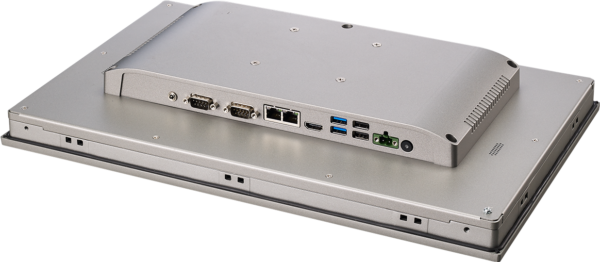

| I/O | 2x RJ45 |
| RAM | 4 GB DDR3L |
| Mass Storage | 1x 64 GB 3D TLC mSATA |
| Expansions | 1x Mini PCIe |
| Power Input | 12 ~ 24 VDC |
| Supported Operating Systems | Microsoft® Windows® 10 IOT LTSC |
| Operating Temperature | 0° ~ 50° C (with SSD) |
| Dimensions (W x H x D) | 419.7 x 269 x 58.6 mm |
| IP Protection Class | IP65 front |
| Cooling | Passive |
| Certifications | BSMI |
| Panel Cutout Dimensions | 413 x 262 mm |
