Professional Line

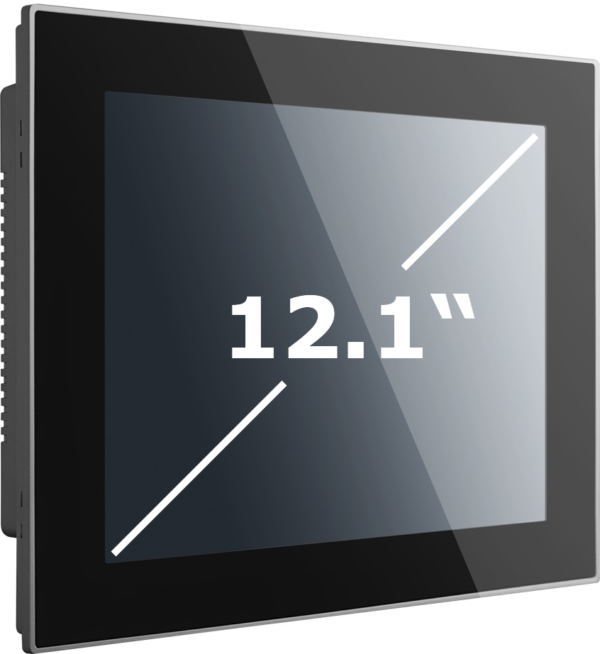

The modern designed Lumina®-3000S series includes front IP65 protected panel PCs with a screen diagonal from 6.5 to 21.5 inches in widescreen format, a powerful yet energy-saving processor and can be operated at temperatures from 0° to 50° C. The panel PCs are equipped with a resistive or projected capacitive touchscreen, enabling user-friendly operation in an industrial environment.
| Display Size | 12.1" |
|---|---|
| Display Type | TFT LED LCD |
| Resolution | 1024 x 768 |
| Colors | n.a. |
| Contrast | 700 : 1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 80° H / 70° V |
| Backlight Lifetime | 30,000 hours |
| Touchscreen | Resistive touch |
| Processor | Intel® Celeron® N2930, Quad-Core |
| RAM | max. 8 GB DDR3L |
| Mass Storage | 1x mSATA |
| I/O | 2x RJ45 |
| Expansions | 1x Mini PCIe, Full-Size |
| Power Input | 12 ~ 24 VDC |
| Supported Operating Systems | Microsoft® Windows® 7/8.1/10 (32/64-bit), WES7, WEC7, Linux®, Android 4.4 |
| Operating Temperature | 0° ~ 40° C (with HDD) |
| Dimensions (W x H x D) | 317 x 246 x 49 mm |
| IP Protection Class | IP65 front |
| Cooling | Passive |
| Certifications | BSMI |
| Options | 1x 2.5" SATA |
Do you need help finding the right system? Our specialists will be happy to support you!
