InoHiL®-B17QW-SP3

Additional information

Mainboard / Backplane	Industrial Mainboard (ATX), 24/7 operation, long-term available
Processor	AMD® EPYC™ 7003/7002, Liquid cooled
RAM	8x DDR4 RDIMM/LRDIMM max. 128 GB/DIMM max. 3200 MHz
Graphic Card	AST2500, 512 MB DDR4, OnBoard AI support: Up to 5x tensor cards, PCIe x16, liquid cooled Optional: NVIDIA® RTX 6000, 48 GB GDDR6, 4x DisplayPort 1.4, PCIe x16

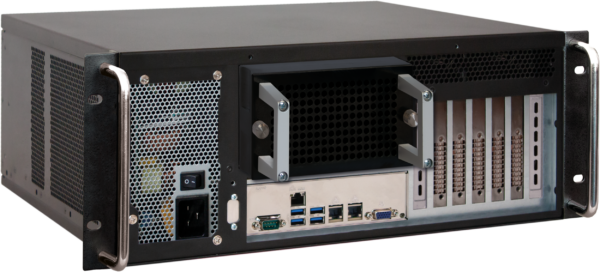

I/O	2x 10 GBit LAN (RJ45) 1x Dedicated IPMI LAN (RJ45) Optional: 2x 100 GBit LAN (QSFP28), NVIDIA® ConnectX®-6 Dx, PCIe x16 2x USB 3.2 1x USB-C 3.2 1x RS-232 1x VGA Optional: 2x DisplayPort

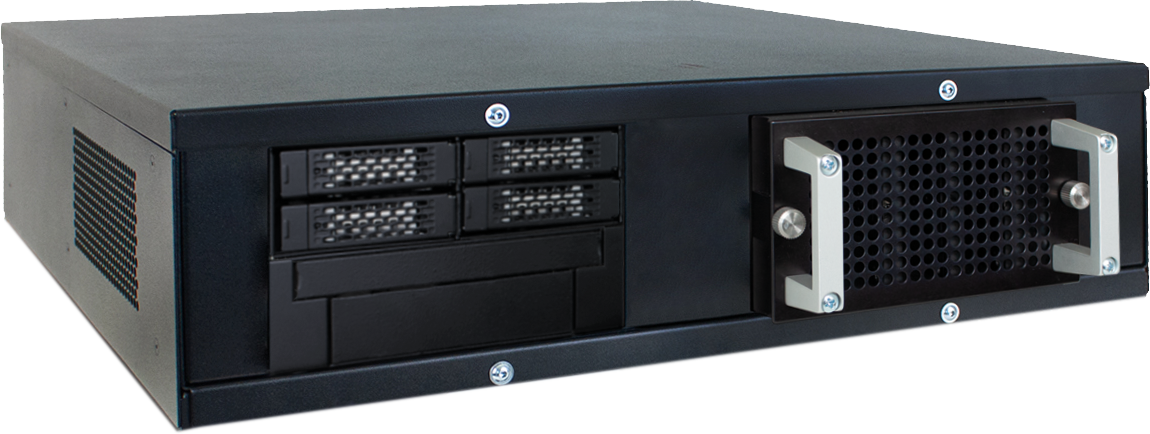

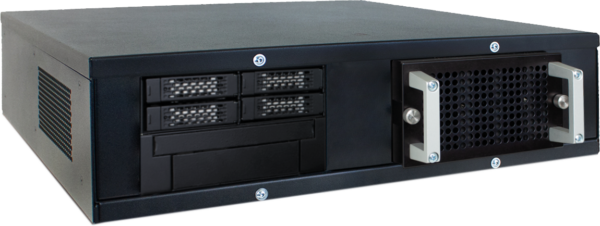

Mass Storage	Internal: 1x 2.5", 2x M.2 (one M.2 slot depending on slot configuration) Integrated QuickTray®-v3, up to 240 TB with 4x NVMe-SSDs up to 26 GB/s Extension: Optional up to 2x QuickTray®-v3, up to 26 GB/s per QuickTray®-v3 (2x QT up to 28 GB/s) and 240 TB with 4x NVMe SSDs
Power Supply	90 ~ 264 VAC 1200 Watt 80 Plus On request: Redundant power supplies for AC and DC
Expansions (mechanical)	7x PCIe x16 (Gen 4), Full-Height One slot of it optional: PCIe x16 (Gen 4) or PCIe x8 (Gen 4), second M.2 or no PCIe, second M.2, 2x OCuLink Additional extensions for automotive applications (Ethernet, CAN, LIN®, etc.)
Chassis	19" 4 U rackmount chassis
Dimensions (W x H x D)	430 x 175 x 400 mm QuickTray® extension: 430 x 115 x 417 mm

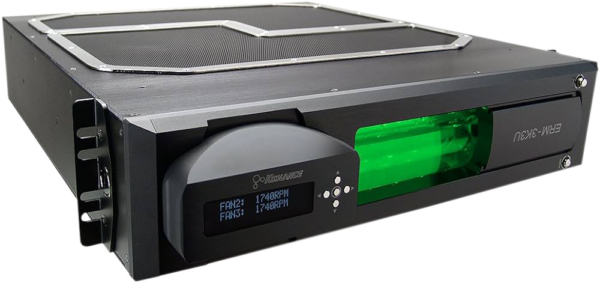

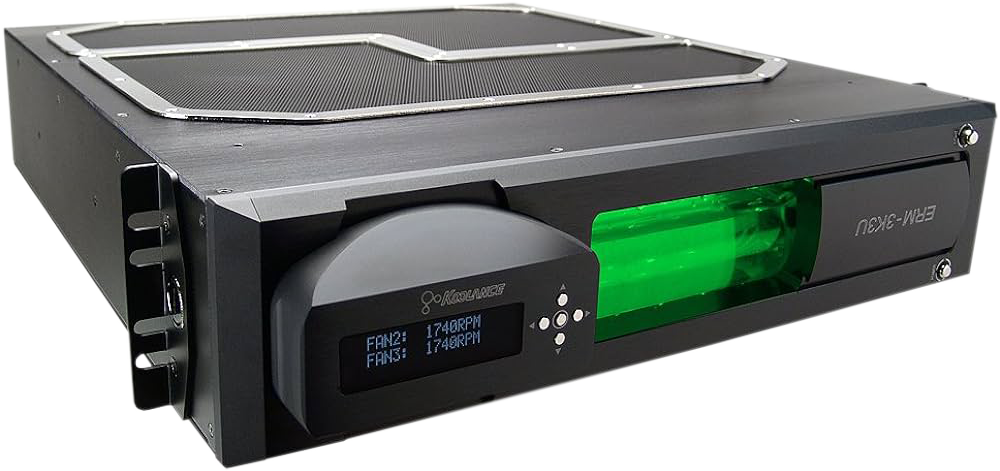

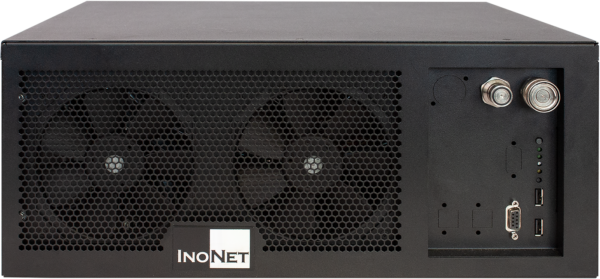

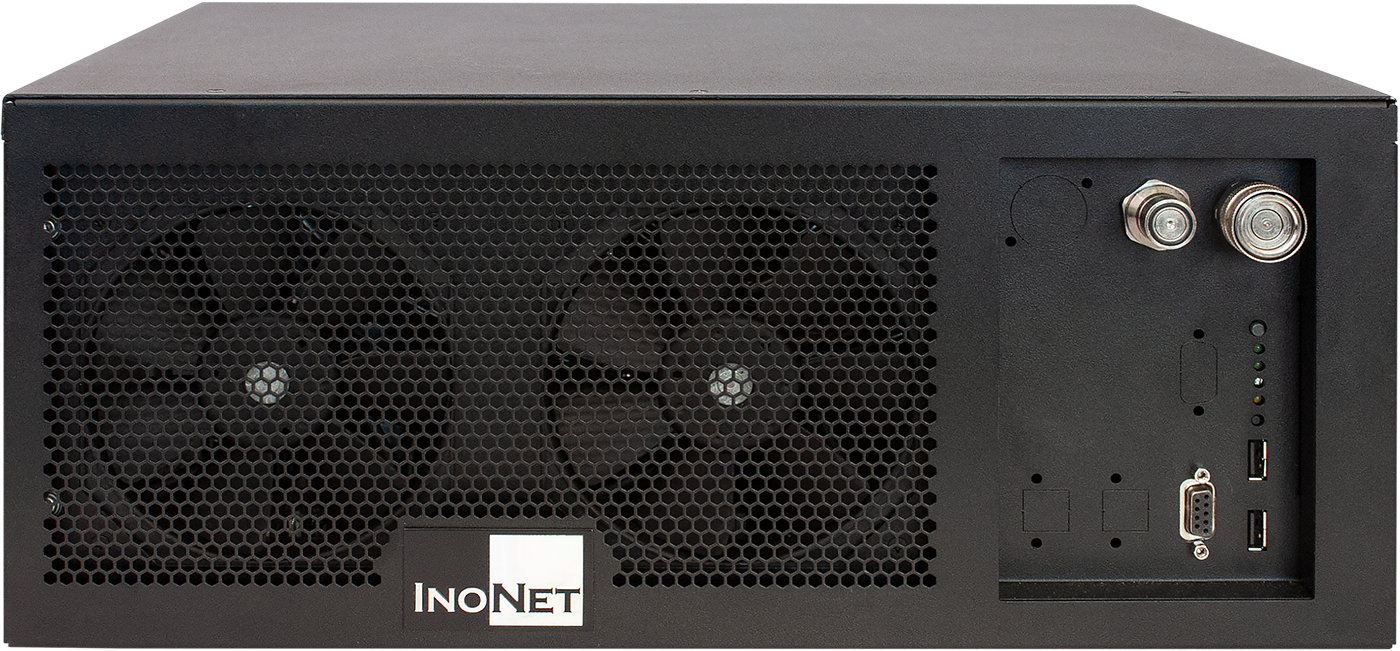

Cooling	Active, 2x 120 mm fans Hybrid cooling CPU and GPU liquid cooled Remote condenser with 9x 120 mm fans for 19“ installation
Operating Temperature	0° ~ 55° C
Storage Temperature	-20° ~ 70° C
Relative Humidity (operation)	10 ~ 90 % (non condensing)
IP Protection Class	IP20
Supported Operating Systems	Microsoft® Windows® 11 Microsoft® Windows® Server Linux®
Filter-Produktlinie	High-End Line

System Description

The robust 19″ server InoHiL^®-B17QW-SP3 delivers high performance for HiL simulations with a powerful AMD^® EPYC™ CPU and up to five graphics/tensor cards (NVIDIA^®). Since the CPU and GPU are liquid cooled, it is ideal for AI/GPU and sensor fusion applications in the ADAS field. Two of the seven PCIe x16 (Gen 4) slots can be equipped with expansion cards (Ethernet, CAN, LIN^®, etc.). The integrated QuickTray^®-v3 with up to 26 GB/s write rate and up to 240 TB storage capacity for easy handling when exchanging storage between vehicle and evaluation station (can be expanded to up to three QuickTray^®s) deserves a special mention here.

Find out more about the InoNet Automotive Ecosystem.
